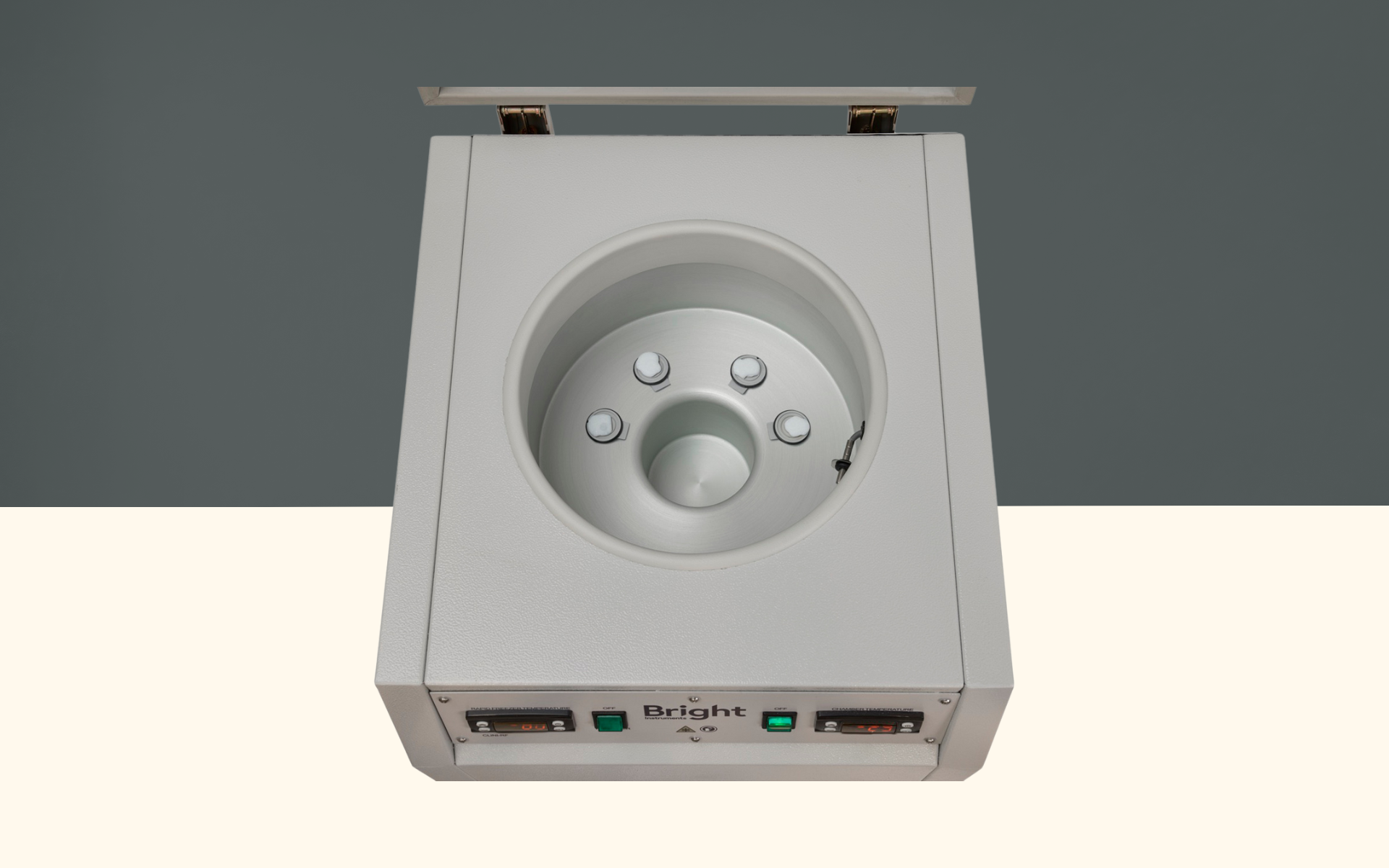

The lower chamber can be filled with 3M’s Novec HFE-7100, into which specimens can be immersed. Alternatively, an aluminium block can be incorporated into which a specimen holder or chuck can be fitted. The upper chamber is used as a short term storage area for specimens after they have been initially frozen in the lower chamber.

Key Features

Seven Day Timer

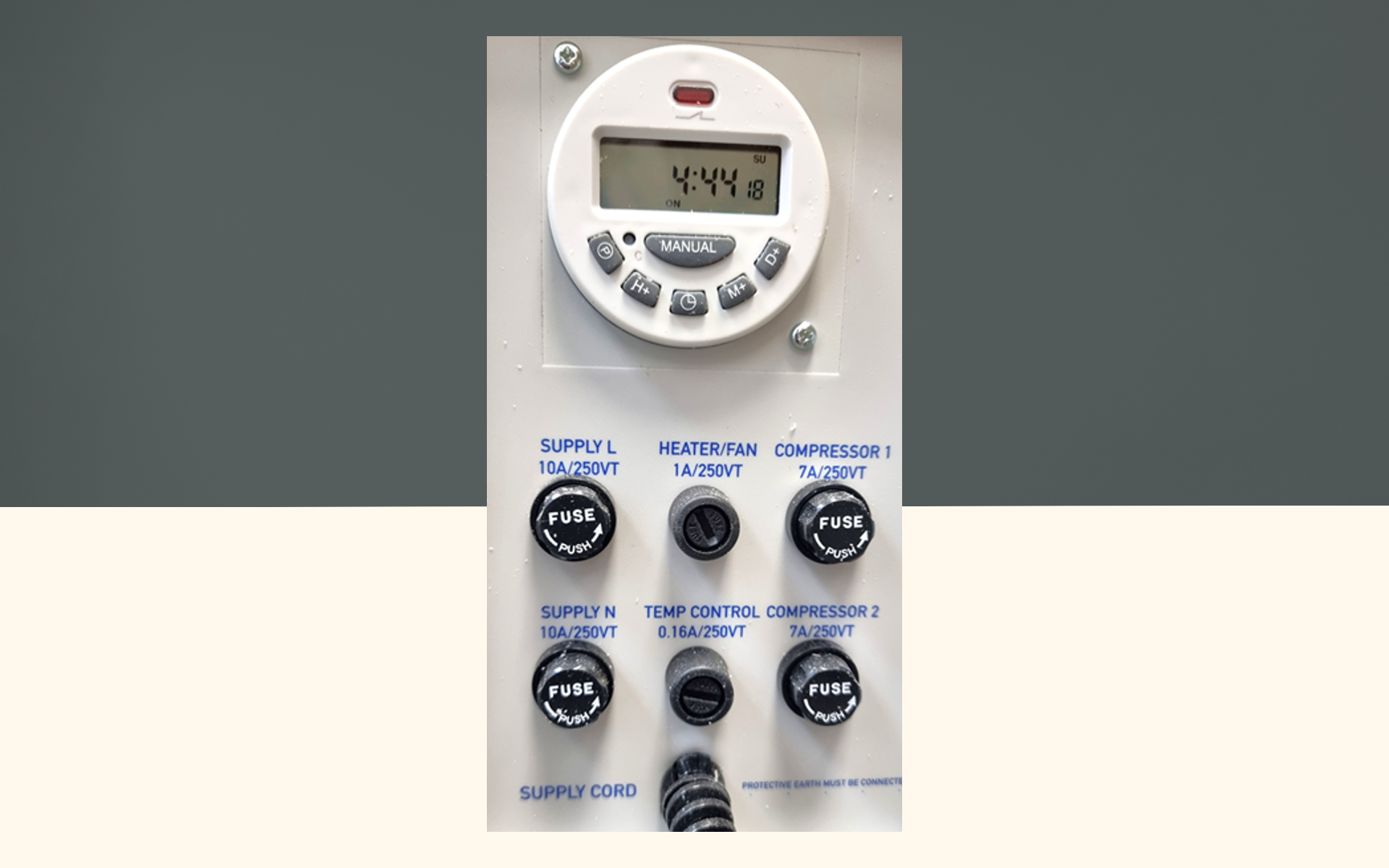

A seven day timer can be fitted to the Clini-RF and is available as an accessory. This means that during the hours when the Clini-RF is not being used it can be run in a ‘standby’ mode with both the upper and lower chambers running at -40°C, thus saving power. At the start of the working day it can be switched to its normal operating mode and the lower chamber can be brought down to -80°C.

Full Details

Features & Benefits arrow

arrow
  • Replaces liquid nitrogen freezing systems
  • Replaces carbon dioxide freezing systems of all types
  • Offers a distinct improvement in laboratory safety
  • Easy to use, therefore little operator training
  • Upper chamber available for storage at -40°C
  • Hold 3M’s Novec Engineered Fluid HFR-7100 for immersion of specimens Typical tissue cooling rate of 0.5°C/s

Additional Information arrow

arrow

Standard accessories include:

  • Cryo-M-Bed
  • Cooling block removal tool
  • Allen key
  • Spare set of fuses
  • Operating manual

Specification arrow

arrow
  • Compressor type

    1 x 15cc displacement (primary) / 1 x 12cc displacement (secondary)

  • Refrigerant

    Ozone friendly HFC refrigerants - R404a (primary) R23 (secondary)

  • Cooling power

    300 watts, Main freezer at -40°C, Rapid freezer at - 70°C

  • Lowest set temperature

    Main freezer -43°C (preset), Rapid freezer -83°C

  • Main freezer to -35ºC

    60 minutes

  • Rapid freezer to -80ºC (Liquid bath or solid freezer block)

    50 minutes (Main freezer at -40°C)

  • Fixed freezer block (optional) to -80ºC

    Less than 30 minutes (Main freezer at -40°C)

  • Safety Features

    Handle designed to ensure maximum distance away from knife edge. Knife guards cover full width of knife

  • Total power consumption

    1100 watts

  • Dimensions

    Cabinet: H1000 x W450 x D500mm, Freezer dimensions: Diameter 275 x D136mm, Rapid freezer dimensions: Diameter 95 x D95mm

  • Packing

    Packed weight: 85kg, Unpacked weight: 113kg
