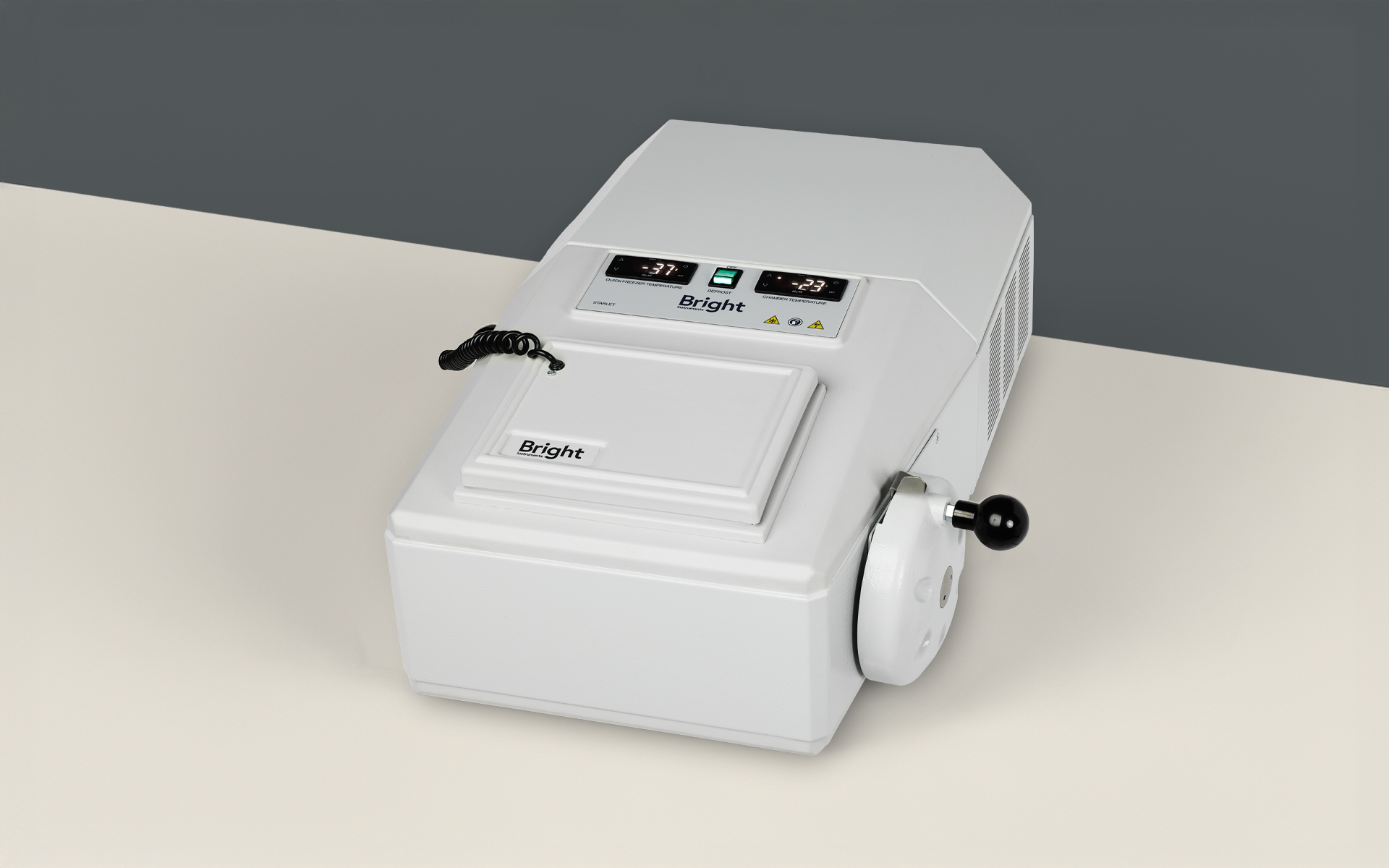

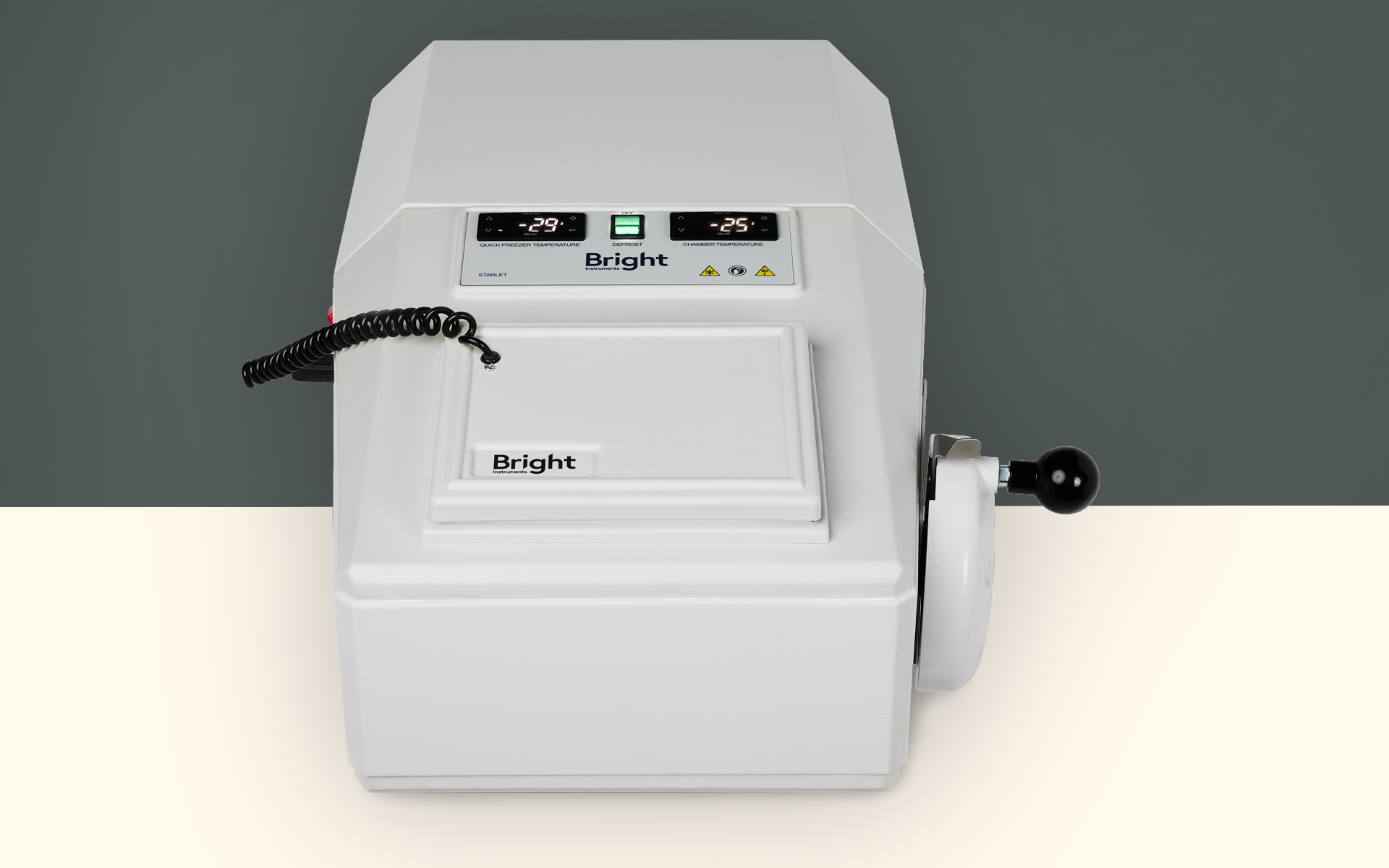

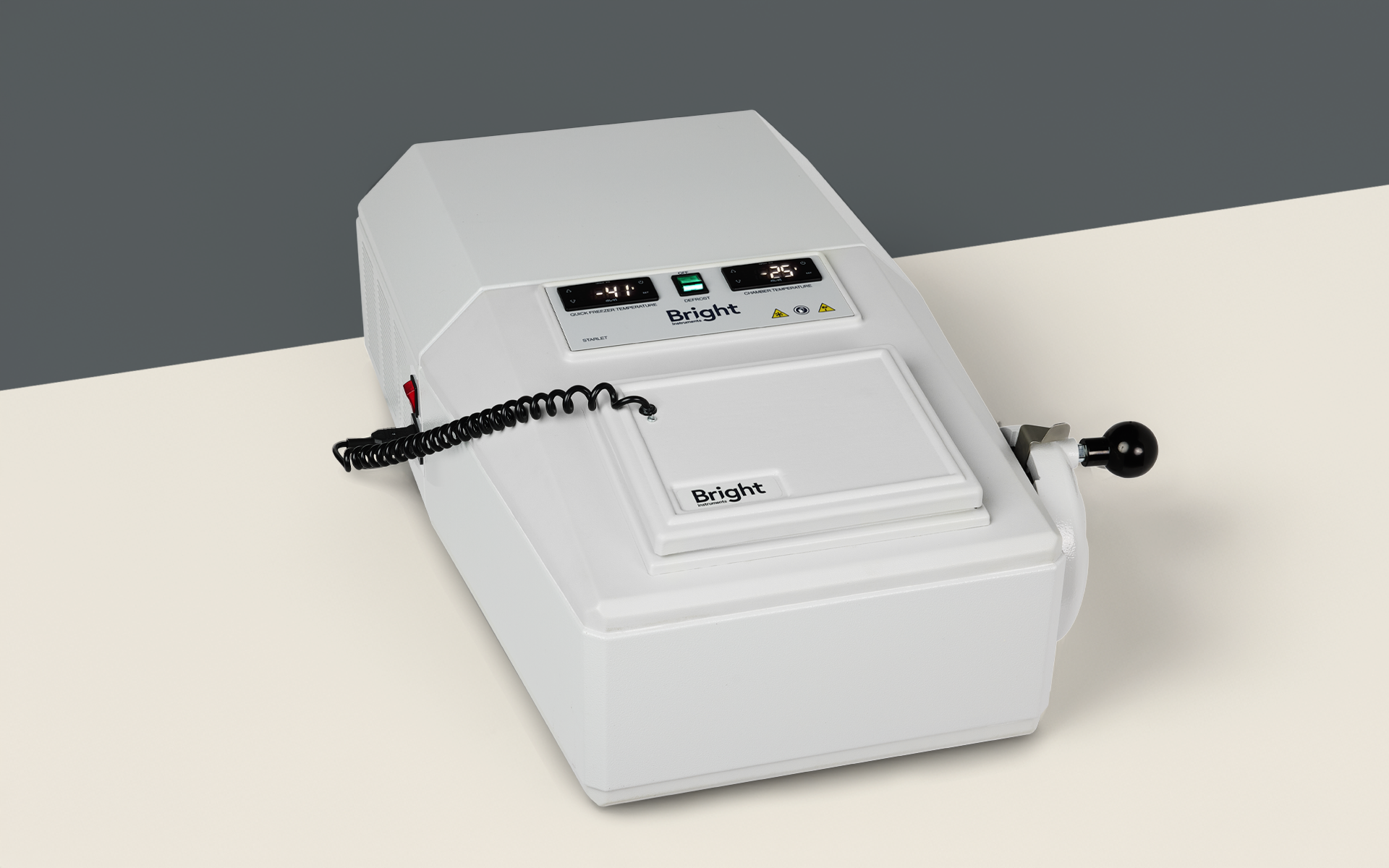

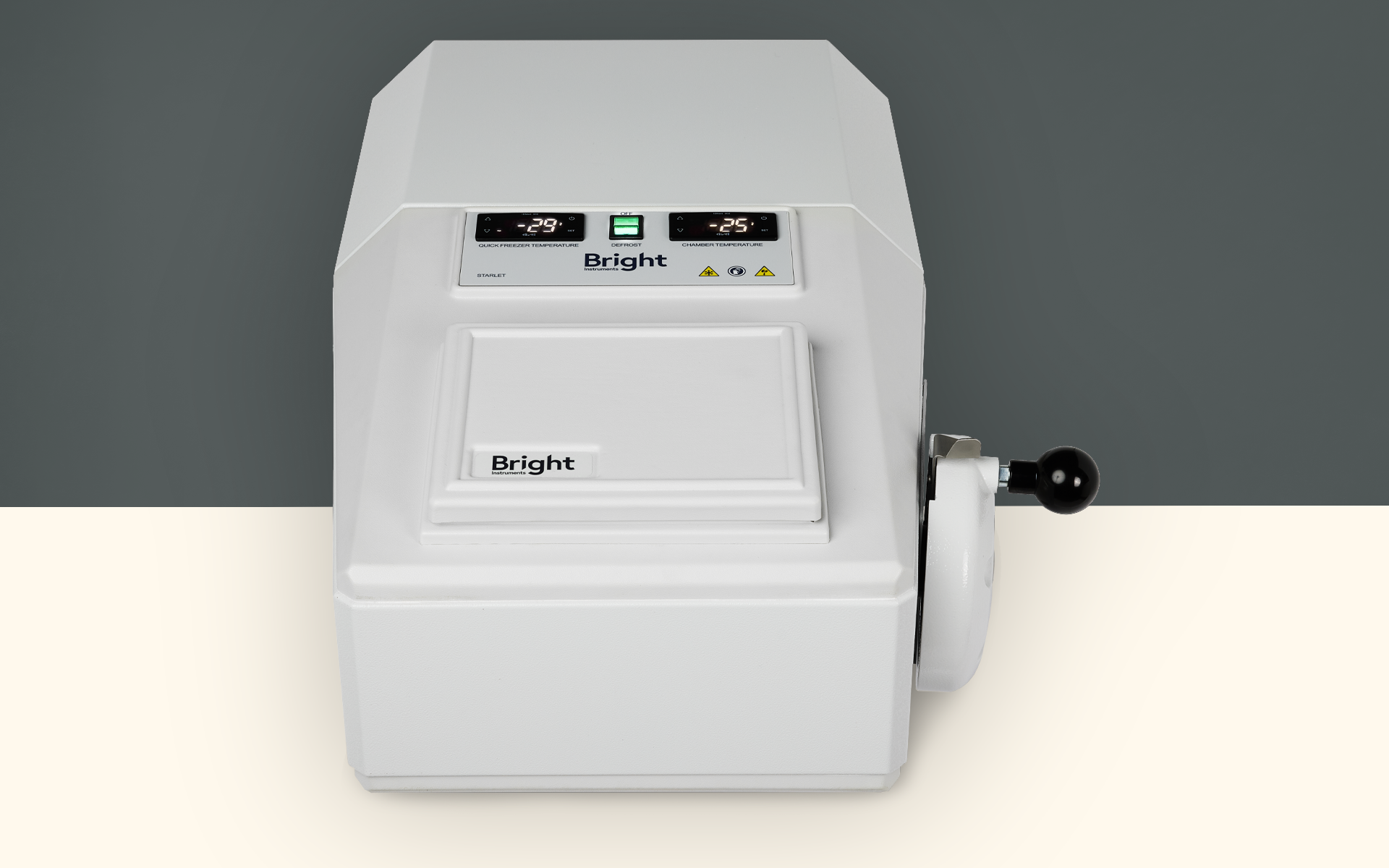

2212-021 Starlet Portable Cryostat

• Compressor Type

  1 x 3.86cc displacement

• Refrigerant

  HFC-compliant refrigerants

• Cooling Power

  125watt at -35°C

• Lowest Set Temperature

  Ambient to -35°C with automatic programmable defrost with manual override and digital display. Detachable cold storage bar.

• Cabinet

  ABS Polymer and Stelvetite Polymer coated steel - scratch, solvent and detergent resistant.

• Cutting Stroke

  30mm

• Maximum Specimen Size

  22mm diameter

• Total Feed Range

  10mm

• Knife Holder

  Magnacut blade holder with long-life disposable blades and integral anti-roll system

• Object Holders

  22mm

• Specimen Orientation

  Adjustable tilt angle 0-12°

• Specimen Thickness Range

  2-12μm in 2μm increments 4-24μm optional

• Dimensions

  H315 x W465mm(min)/ 546mm(max) x D740mm

• Packing

  Net weight: 40kg, Gross weight: 48kg, Packing dimensions: H400 x W920 x D550mm, Shipping volume: 0.20m3

• Factory fitted UV decontamination system (optional)

• An ABS Polymer and rustproof steel cabinet coated with scratch, solvent and detergent resistant PVC to provide strength and durability.
• A polished stainless steel chamber with detachable cold storage bar and detachable storage shelf.

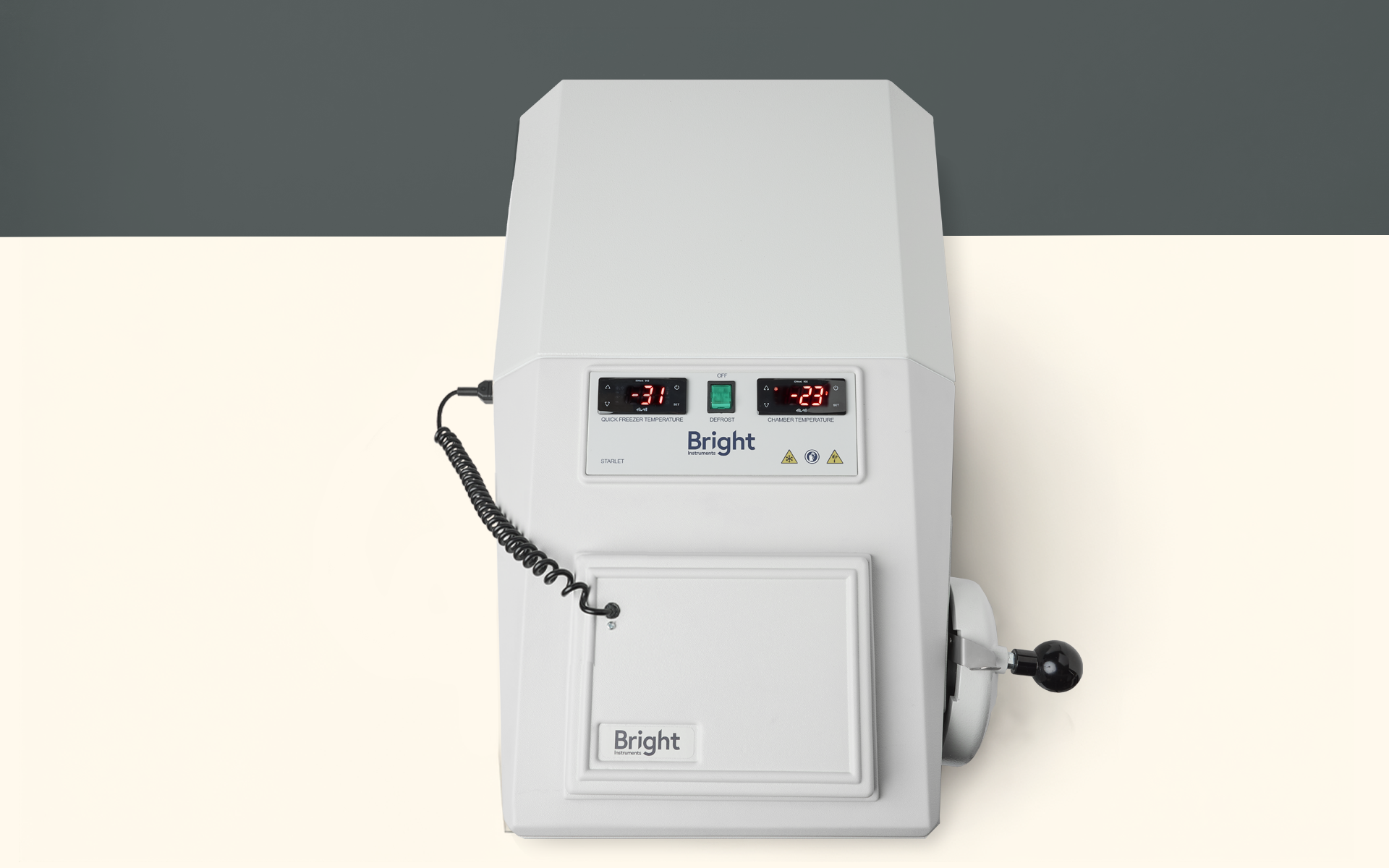

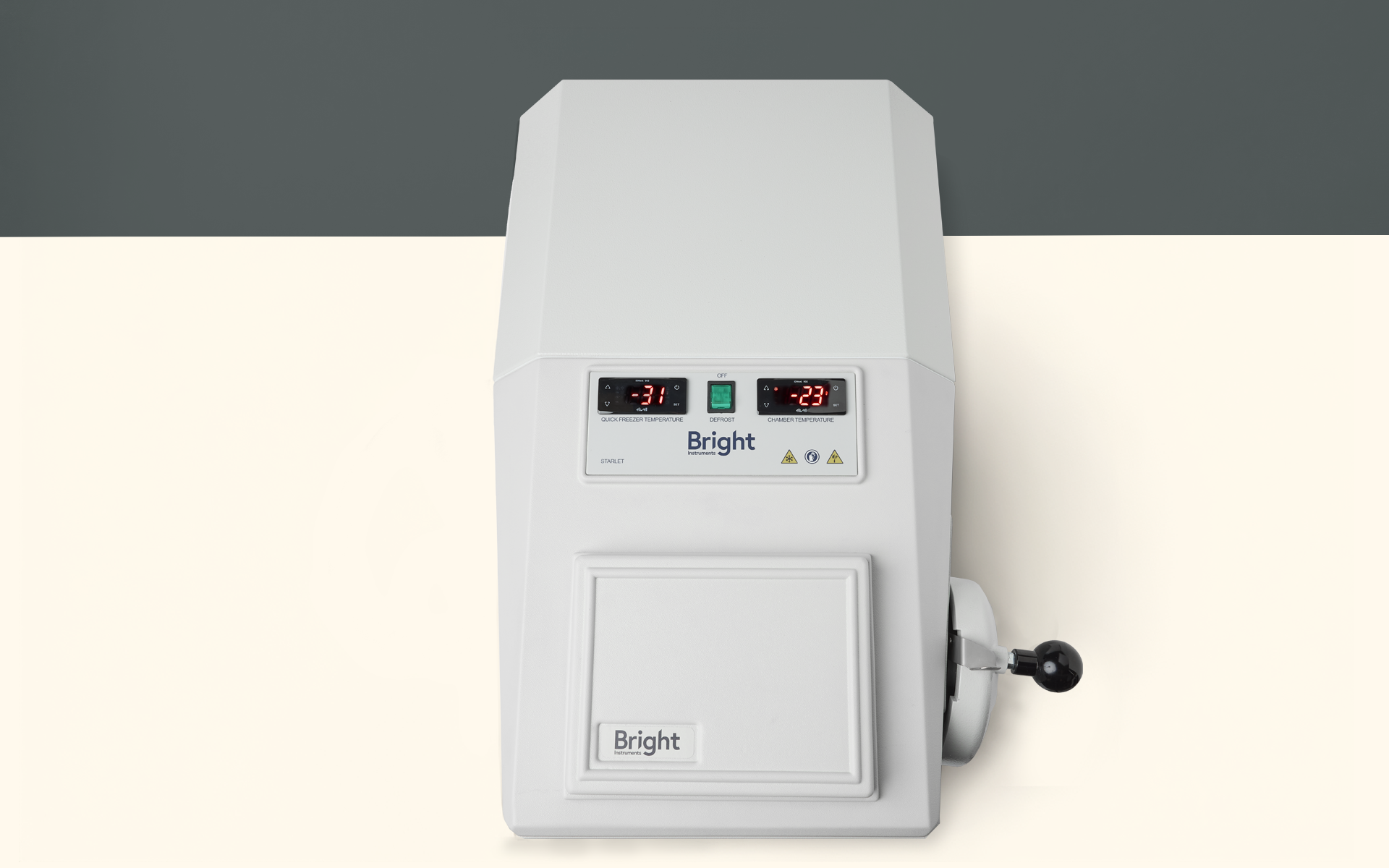

• Thermostatically controlled chamber temperature in the range ambient to -35°C with digital display.
• It uses disposable blades and incorporates the Easi-Set anti-roll plate.
• The Starlet cuts excellent sections just like a full sized cryostat.
• Small and portable.
• Incorporates the Magnaplate anti-roll plate system.
• Complete with all standard accessories to start sectioning right away.

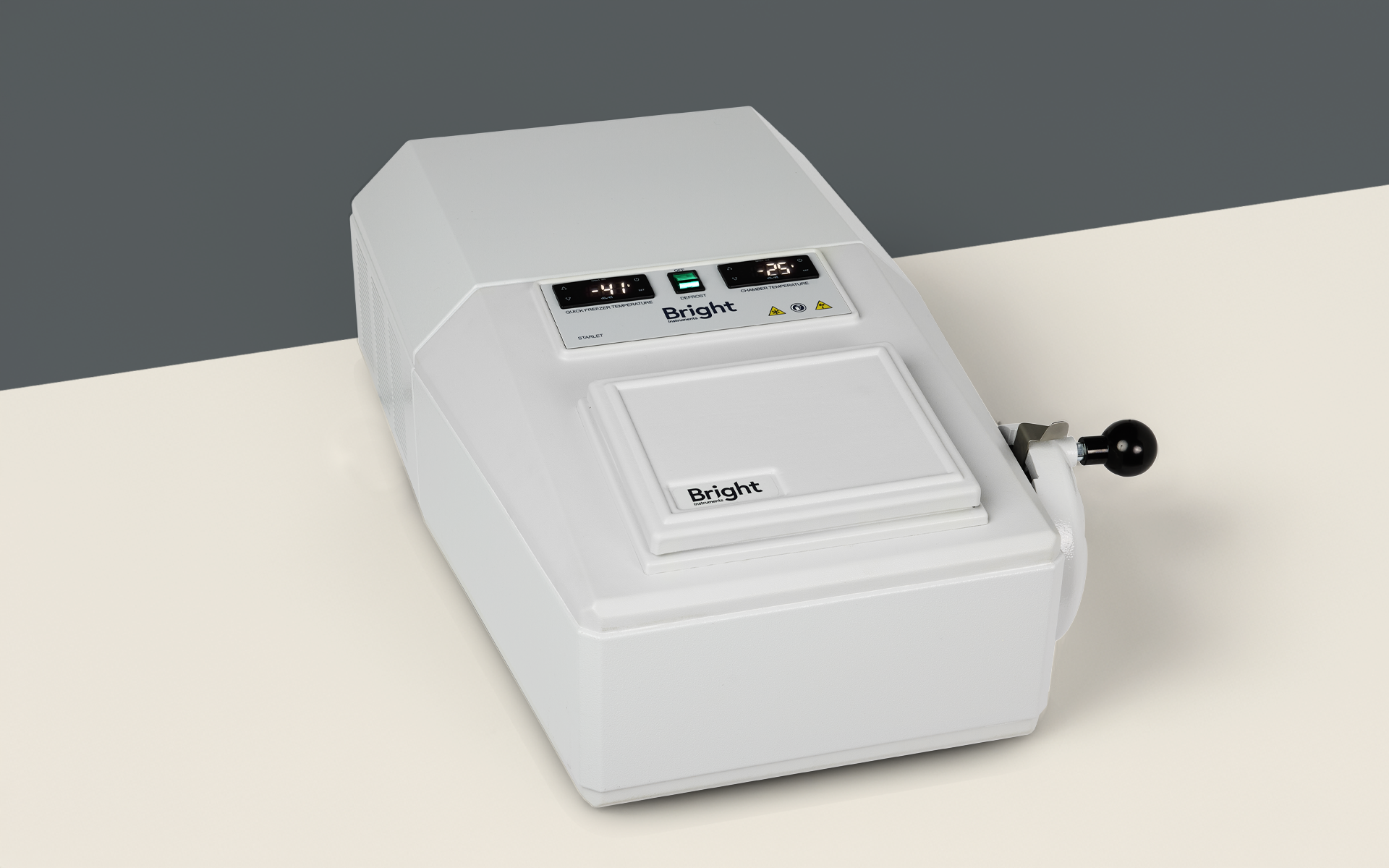

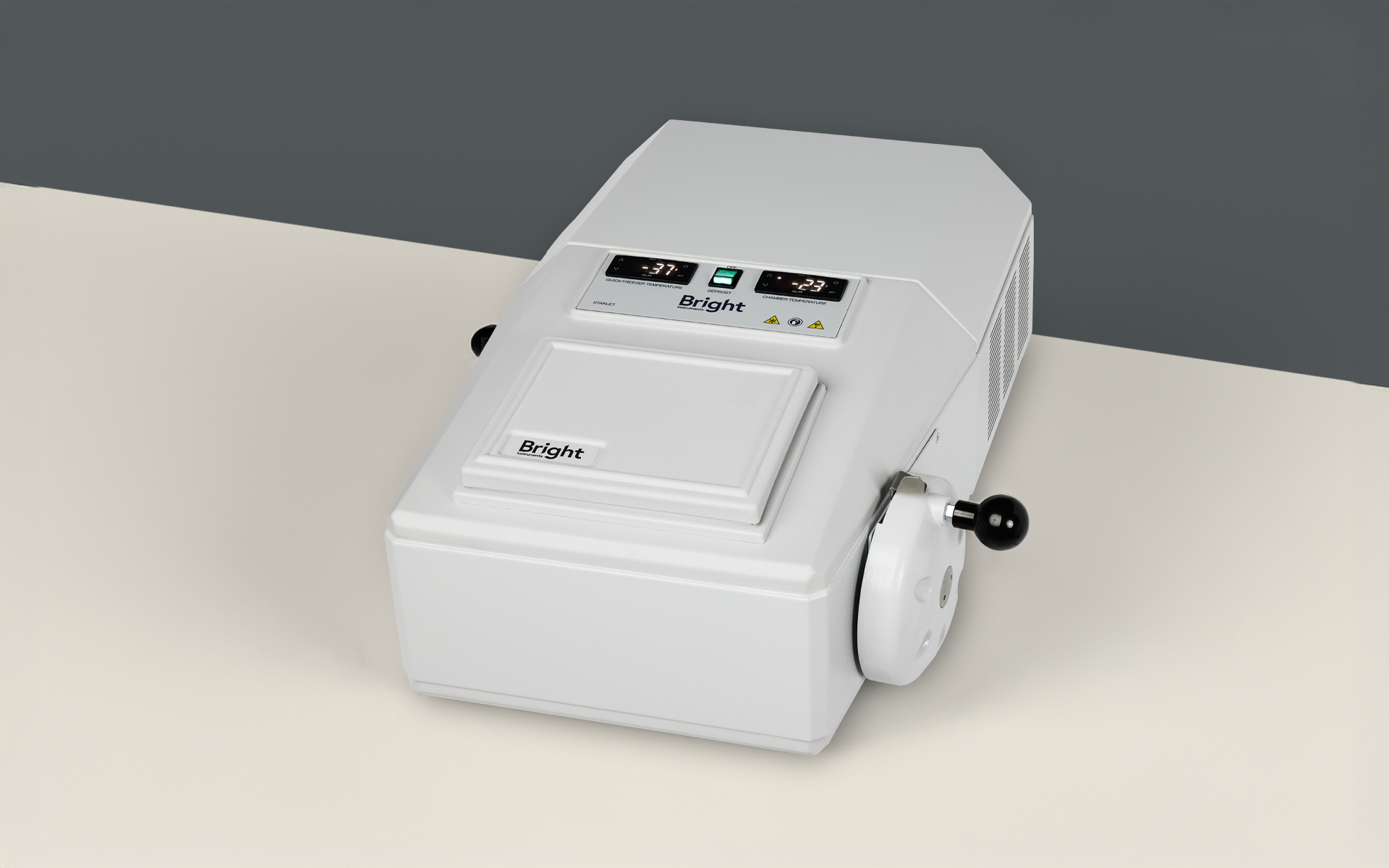

The Compact Cryostat
Of an elegant appearance, durable and easy to clean, the Starlet cabinet is manufactured using scratch, solvent and detergent resistant ABS Polymer and Stelvetite Polymer coated steel. The chamber is of stainless steel construction and comes complete with a detachable quick freezer bar and detachable storage shelf. Easy to clean and resistant to common decontaminating agents, the working chamber is convenient to use.

Being relatively small the Starlet can provide rapid cooldown times, down to -35°C in the chamber with the detachable cold storage bar. While not in use, an insulated cover is pressed in place to ensure efficient running of the refrigeration system and also assists in reducing frosting. If the unit is transported, the chamber will remain cold for prolonged periods.

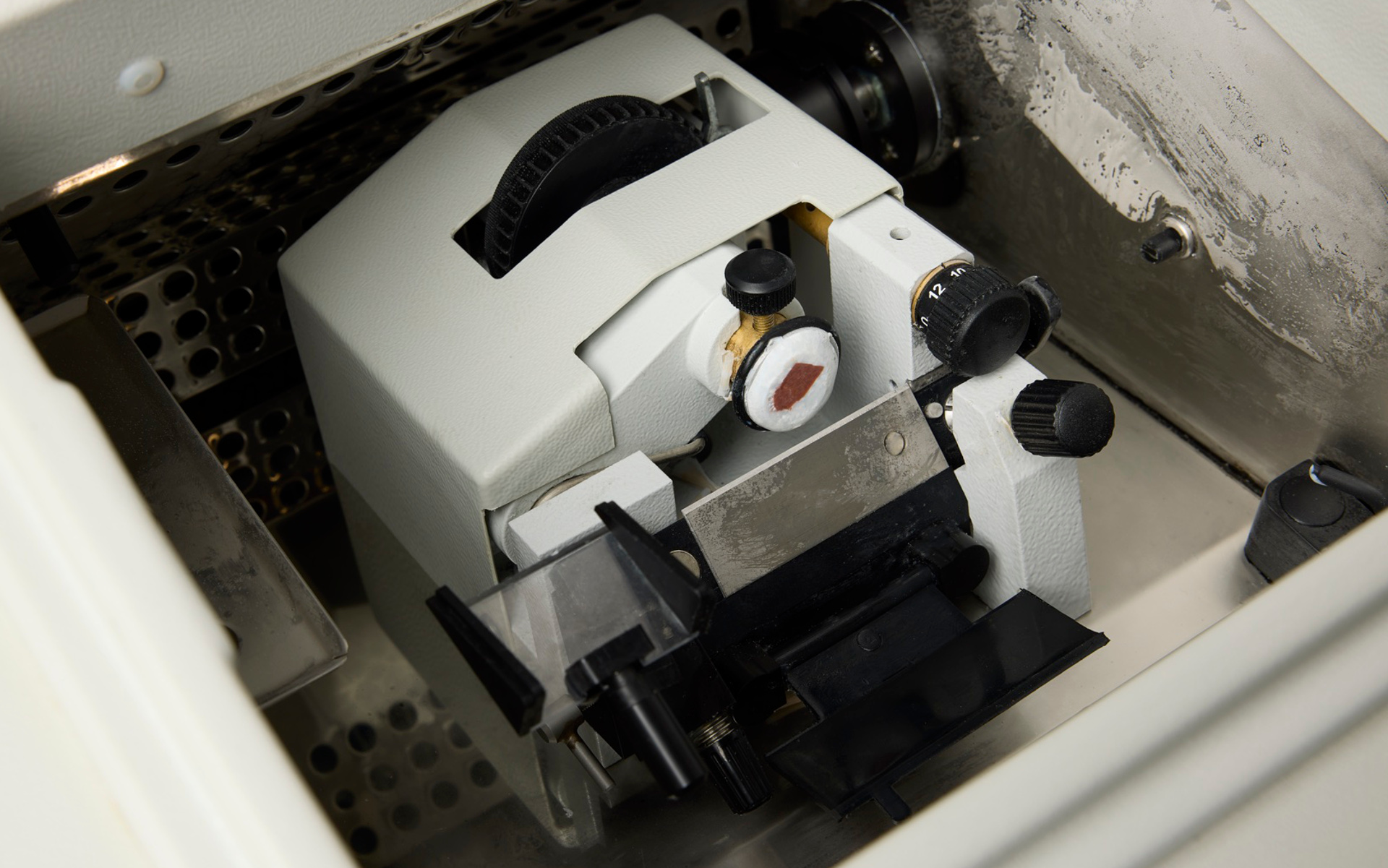

The Miniature Radial Microtome

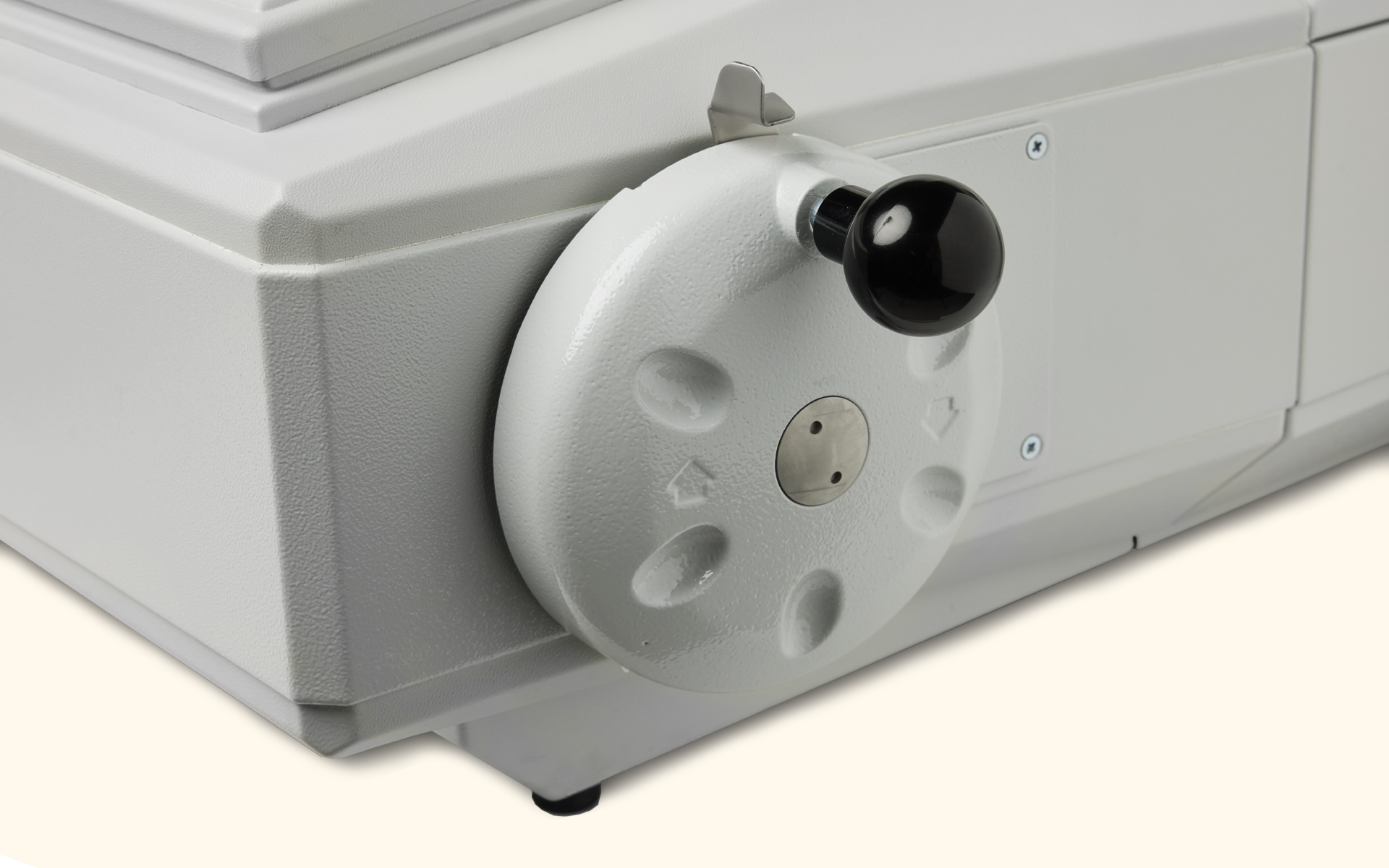

Unique to and designed specifically for the Starlet, the microtome is of radial, flat cutting design and can be operated by either a handwheel or a lever. Weighing approximately 1.8kg, the microtome is capable of cutting a wide range of specimens including soft tissue, hair follicle, cardiac muscle and lung. The Magnacut disposable blade system is fitted as standard, using long-life disposable blades for quick results, and of course, it eliminates the inconvenience of knife resharpening.

Complete with an Easi-Set anti-roll plate, the Starlet is fitted with a 2-12μm feed screw for sectioning in 2μm increments, although a 4-24μm feed screw is available as an alternative. Taking only seconds to remove from the chamber, the microtome is easy to clean, resists corrosion and is easy to service. Very little routine maintenance is required.

Environmentally Compliant
The Starlet uses a HFC refrigerant blend that is in compliance with GWP guidelines.
