2001 Solid State Freezer
For some sectioning work it is necessary to cool a specimen below room temperature. The Bright Solid State Freezer incorporates a Peltier device cooling stage and will permit specimen cooling from ambient to -25°C or lower, depending on conditions.
Expert Freezing

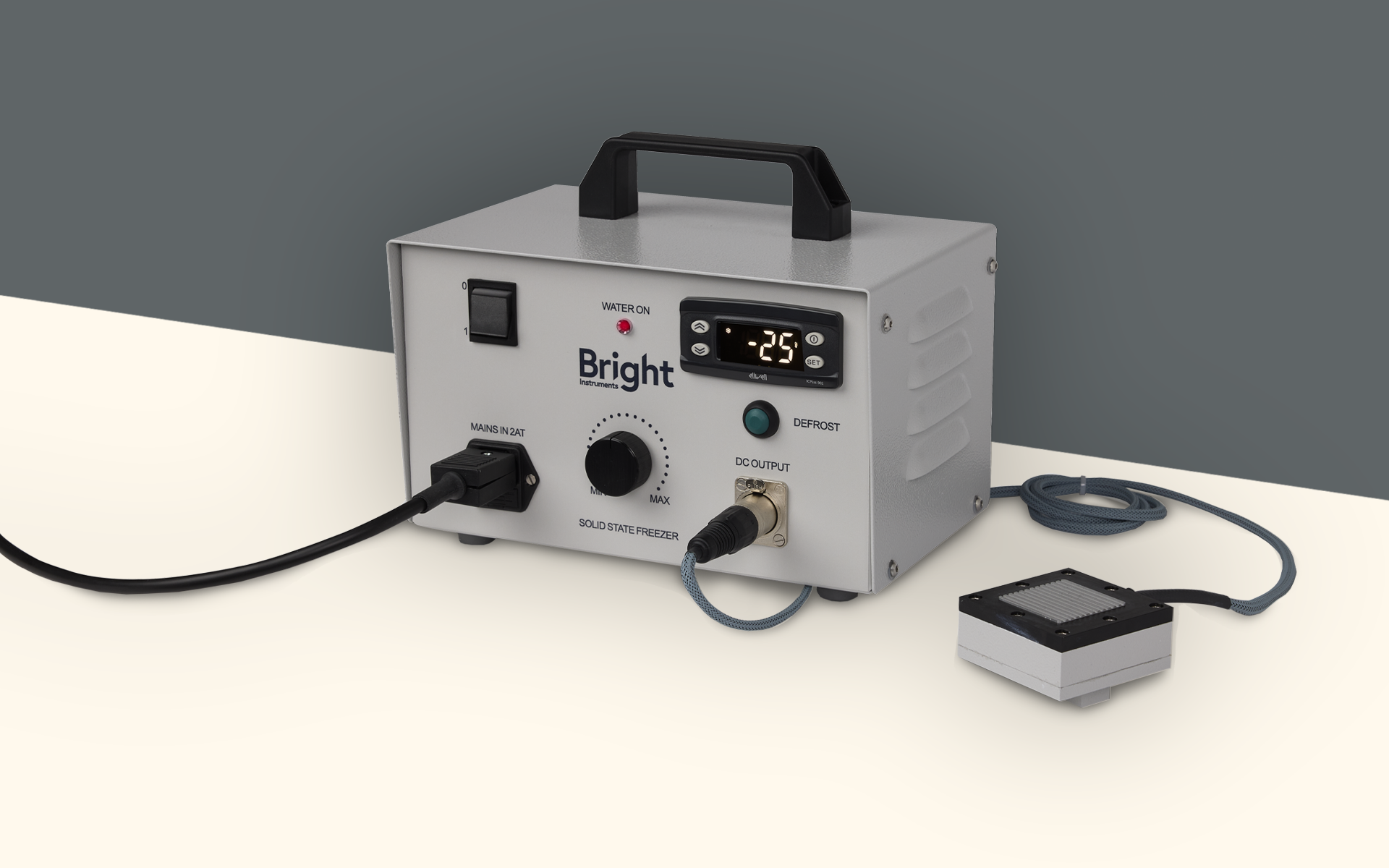

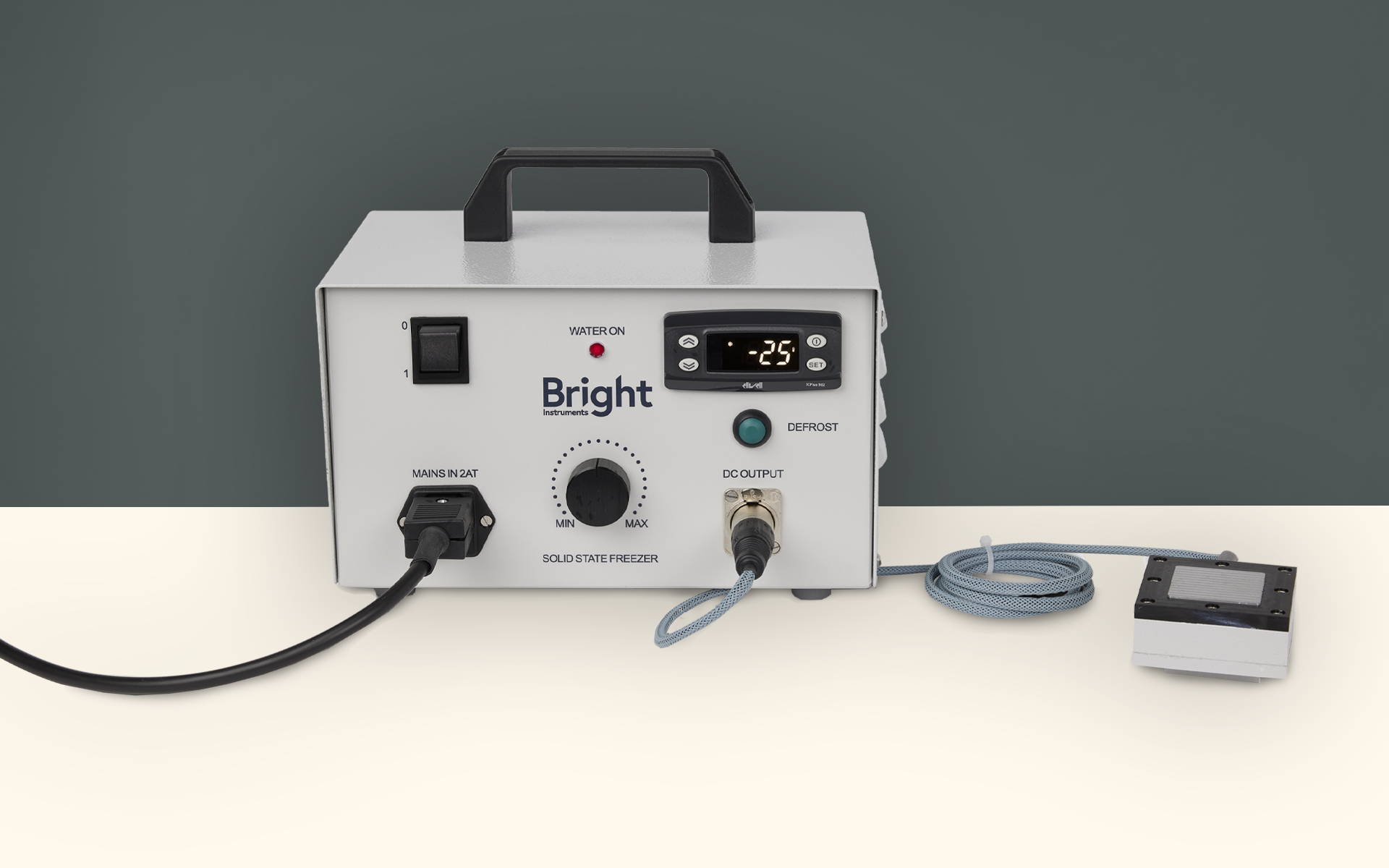

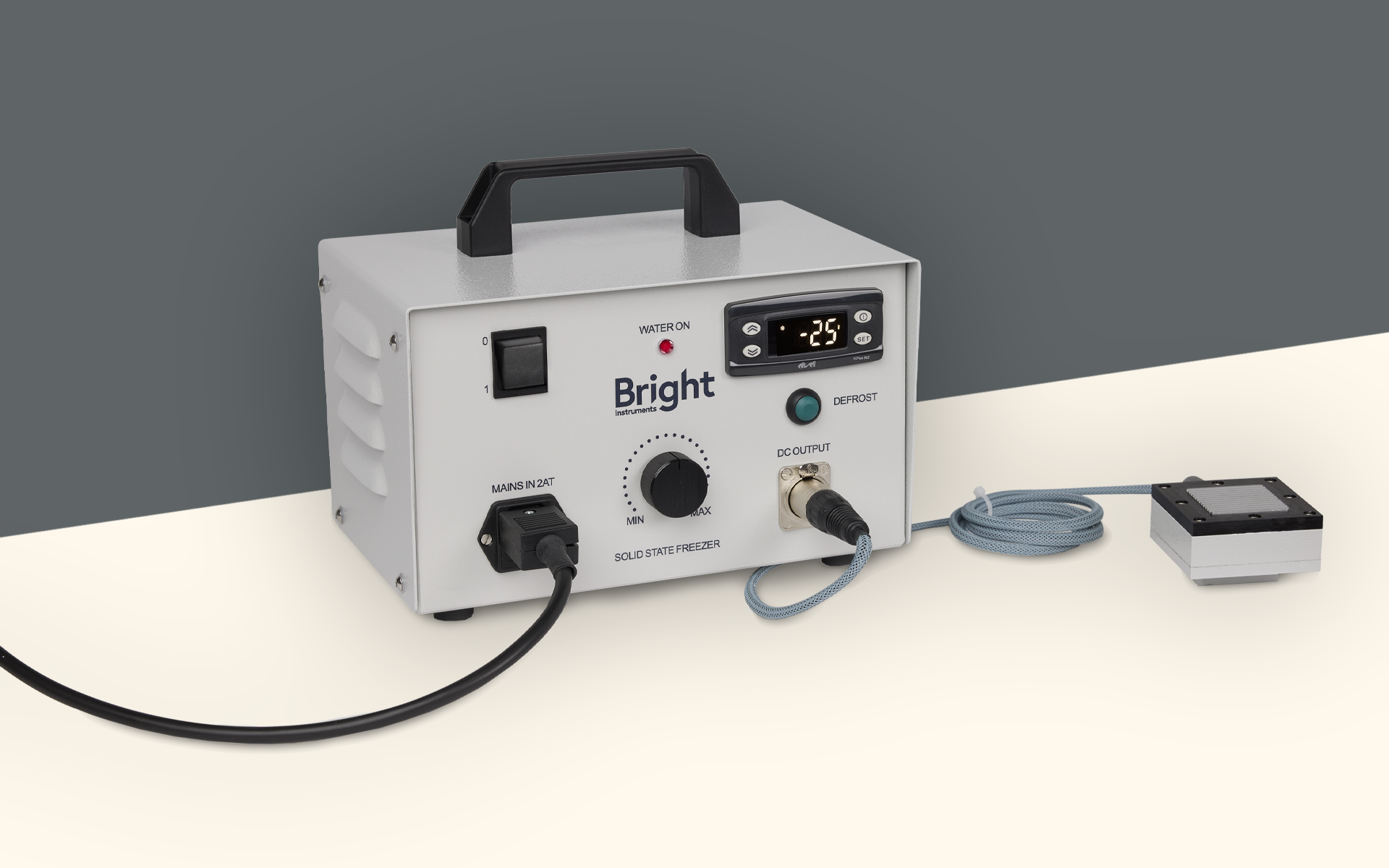

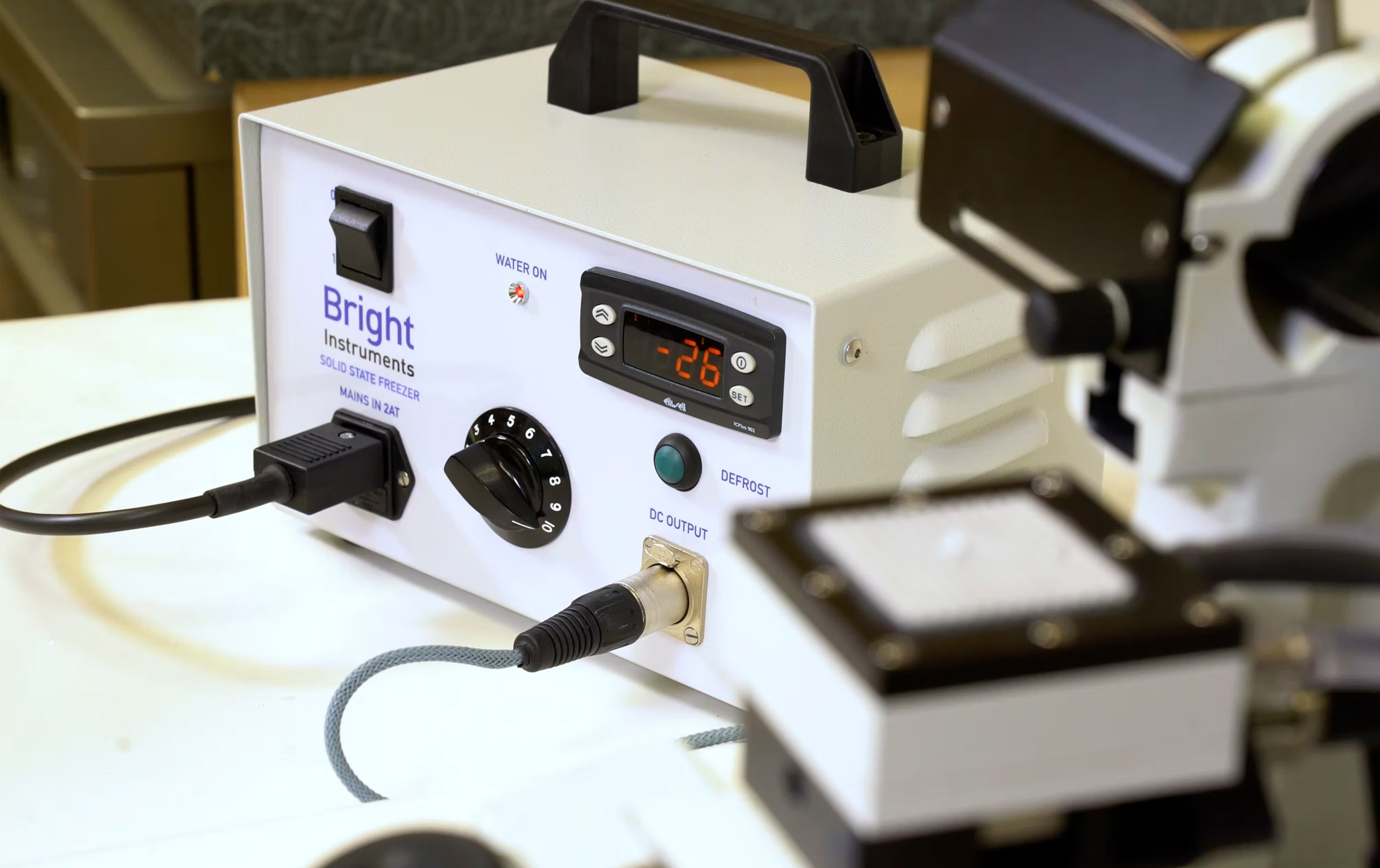

The equipment consists of a control unit and a cooling stage, with the cooling stage available in 40mm x 40mm. Primarily designed for use with the Bright 8000 base sledge microtomes, the Solid State Freezer may be used with other rotary and sledge microtomes.
Key Features

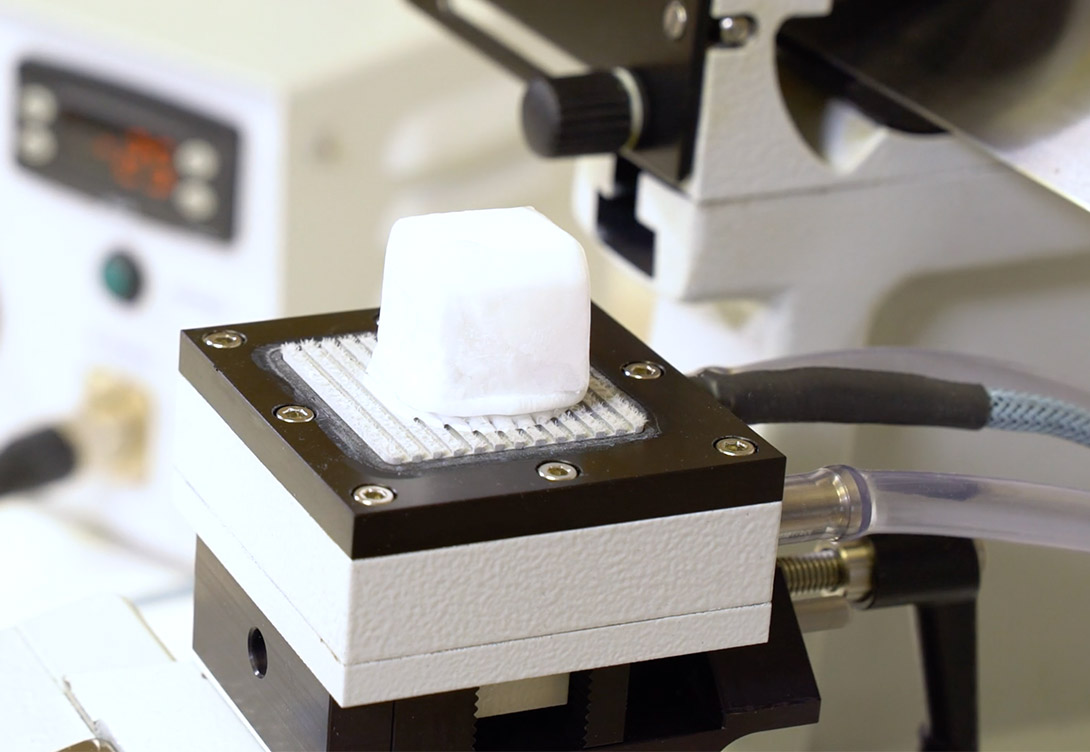

Specimen Holder
The Solid State Freezer fits to the microtome in place of the normal specimen holder. It has a water inlet, a water outlet and an electrical connection to the control unit. The control unit permits temperature control but does not measure temperature directly, instead a reading of the current passed to the Peltier device is indicated on the front panel. The control unit also has a built in safety device, which detects low water flow. After sectioning, the specimen is quick and easy to remove.
Please contact your specialist here to find out more to discuss bespoke solutions.

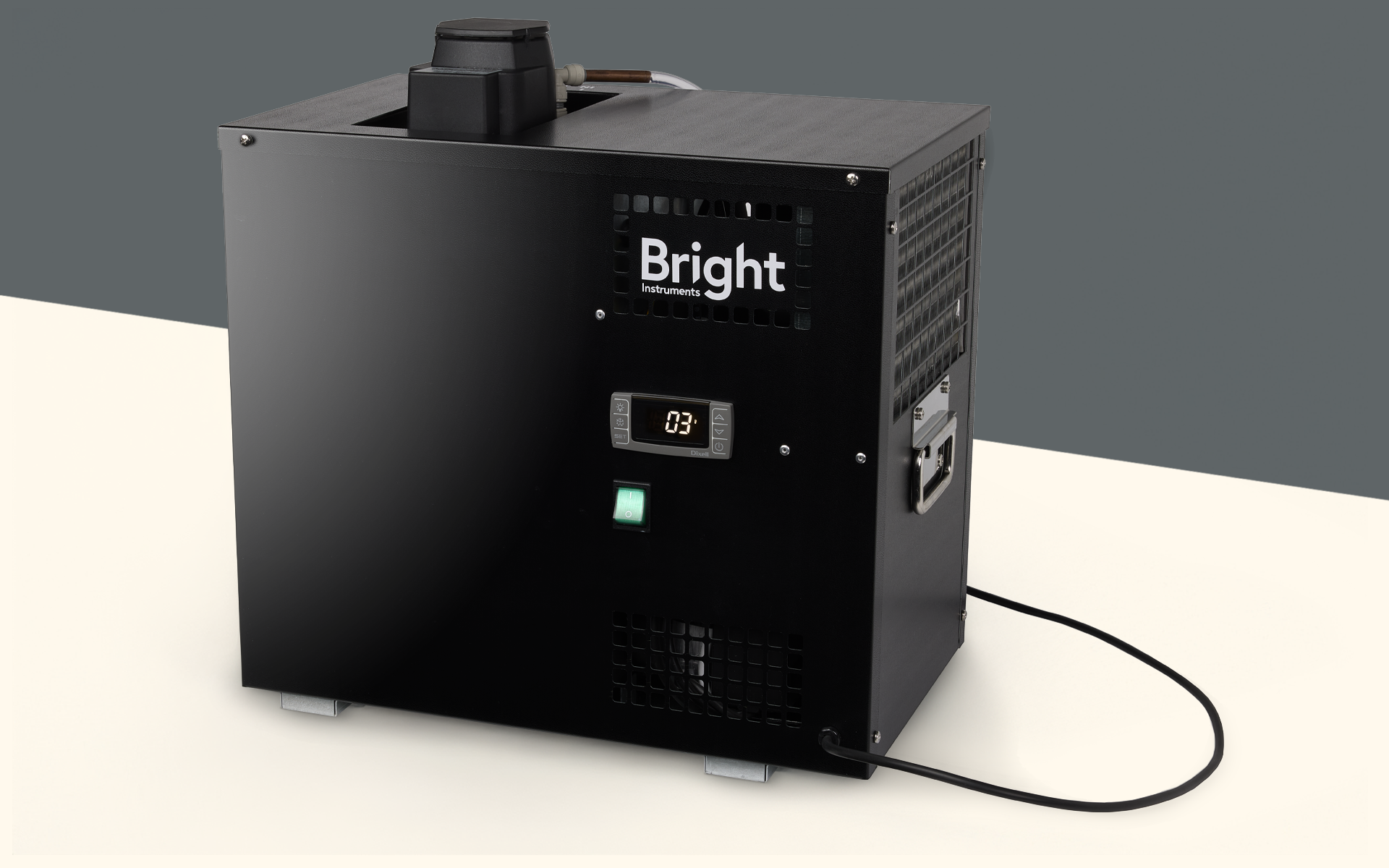

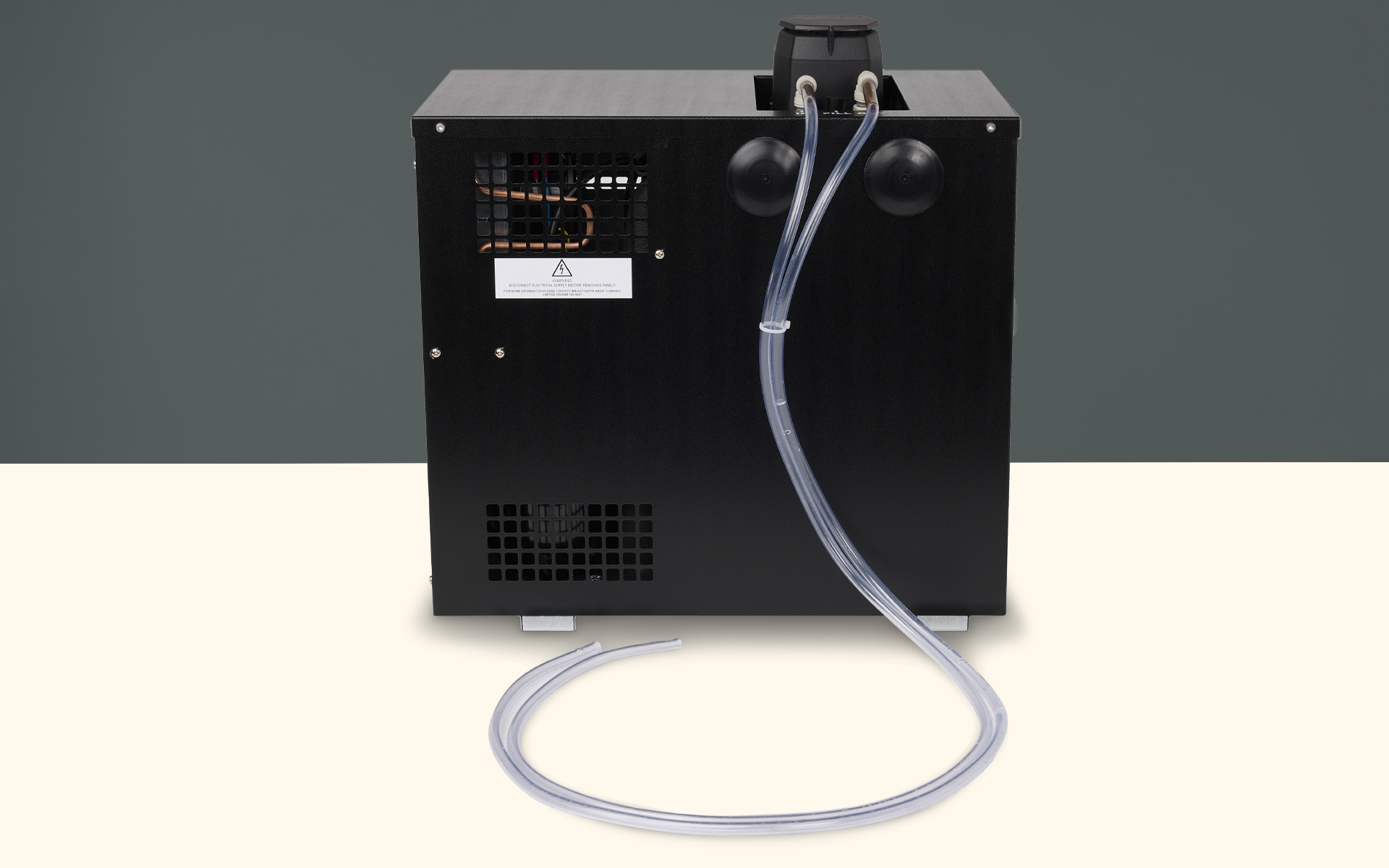

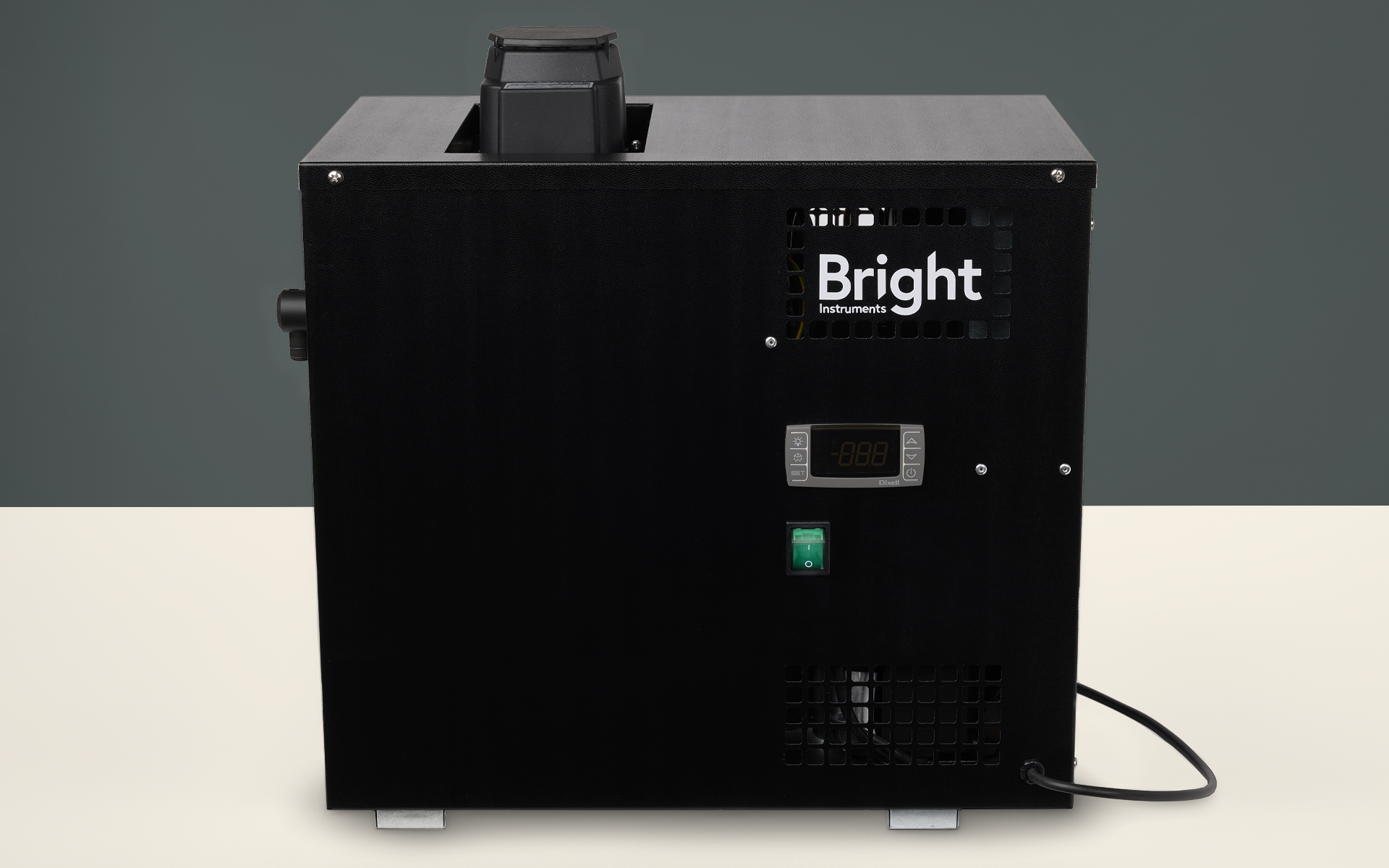

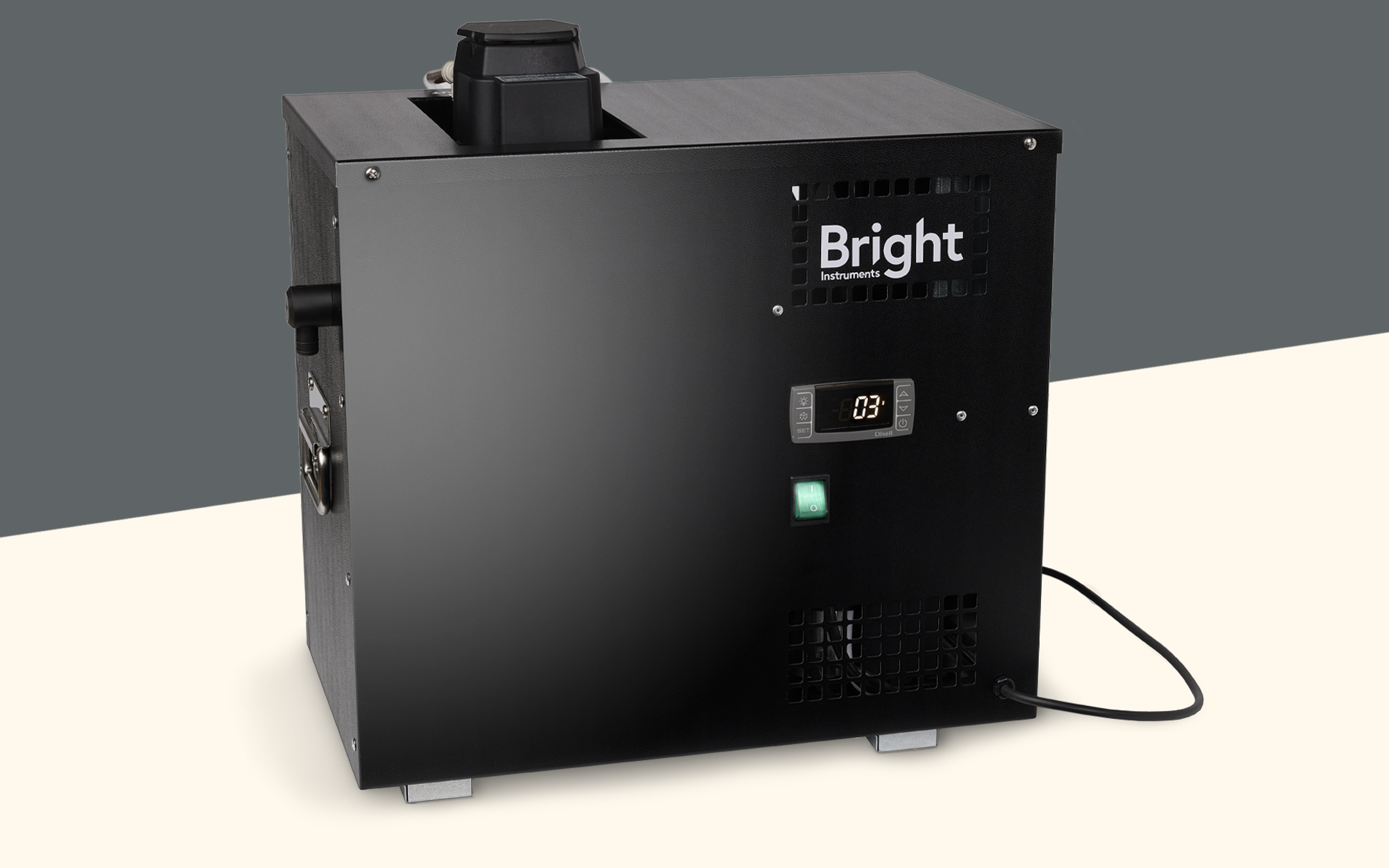

Optional recirculating chiller
The Solid State Freezer requires a flow of coolant to dissipate the heat in the peltier head. It has been shown that recirculating chillers are greatly more efficient and cost effective than tap water; and of course offer sustainable benefits of reducing water waste.
Contact your specialist to receive a quotation for the Freezer & chiller combination.
Full Details
Specification
-
Cooling Power
21 watts -
Lowest Temperature
-32°C -
Cooling Rate (from switch on)
Reaches -20°C after approx 55 seconds -
Control Unit Dimensions
260 x 145 x 230mm -
Stage Dimensions (30 x 30mm)
54 x 54 x 24mm -
Stage Dimensions (40 x 40mm)
63 x 63 x 24mm -
Net Weight
10kg -
Gross Weight
15kg -
Shipping Volume
0.158m³ -
Packing Dimensions
H580 x D680 x W400mm
Features & Benefits
- Temperature control to -25°C
- Easy to use
- Quick and easy removal of specimen
- Low water pressure detector
- Two stage sizes are available
- Standard accessories include:
- Cryo-M-Bed, Cryospray 134, spare set of fuses, operating manual
